Schema HITDataStandard500.xsd

schema location:	C:\Users\chris\Desktop\DataStandards\HIT\HITDataStandard500.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://www.himsa.com/Measurement/HearingInstrumentTest

Elements	Complex types	Simple types
HIMSAHitStandard	AttackReleaseMeasurementPoint	BatteryPillType
	BatteryCurrentMeasurement	BatteryType
	BatteryMeasurementConditions	CouplerType
	BatteryMeasurementPoint	FittingRule
	EquivalentInputNoise	HearingInstrumentType
	FrequencyMeasurement	MeasurementIdentification
	FrequencyMeasurementPoint	MeasurementMode
	FullTargetCurve	SignalOutputType
	HarmonicDistortionMeasurementCurve	SignalType
	HarmonicDistortionPoint
	InputOutputMeasurement
	InputOutputPoint
	IntermodulationDistortionMeasurement
	IntermodulationDistortionPoint
	MeasurementConditions
	OcclusionEffects
	RealEarCouplerDifference
	TargetCurve
	TargetMeasurement
	TargetMeasurementPoint
	TargetPoint

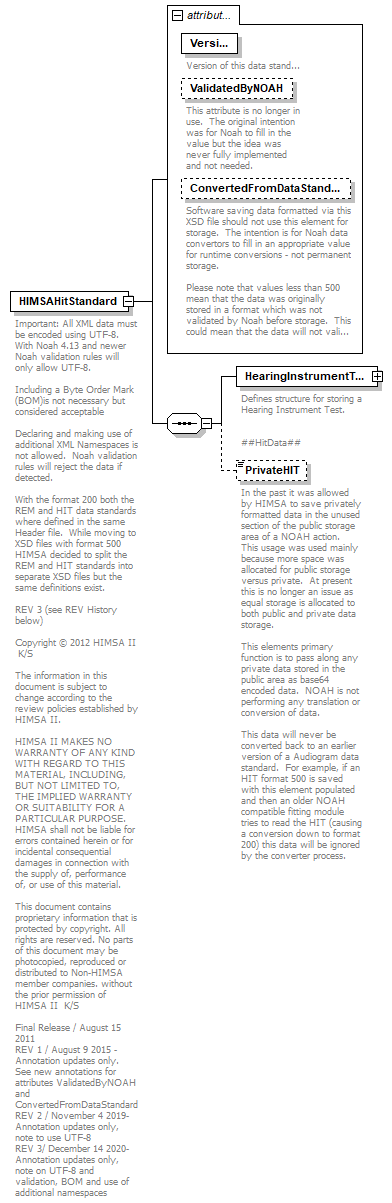

element HIMSAHitStandard

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
properties	content  complex
children	HearingInstrumentTest PrivateHIT
attributes	Name   Type   Use   Default   Fixed   Annotation Version   derived by: xs:integer   required      500   documentation Version of this data standard ValidatedByNOAH   xs:boolean   optional         documentation This attribute is no longer in use.  The original intention was for Noah to fill in the value but the idea was never fully implemented and not needed. ConvertedFromDataStandard   derived by: xs:integer            documentation Software saving data formatted via this XSD file should not use this element for storage.  The intention is for Noah data convertors to fill in an appropriate value for runtime conversions - not permanent storage. Please note that values less than 500 mean that the data was originally stored in a format which was not validated by Noah before storage.  This could mean that the data will not validated against this version
annotation	documentation Important: All XML data must be encoded using UTF-8.  With Noah 4.13 and newer Noah validation rules will only allow UTF-8. Including a Byte Order Mark (BOM)is not necessary but considered acceptable Declaring and making use of additional XML Namespaces is not allowed.  Noah validation rules will reject the data if detected. With the format 200 both the REM and HIT data standards where defined in the same Header file.  While moving to XSD files with format 500 HIMSA decided to split the REM and HIT standards into separate XSD files but the same definitions exist. REV 3 (see REV History below) Copyright © 2012 HIMSA II  K/S The information in this document is subject to change according to the review policies established by HIMSA II. HIMSA II MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OR SUITABILITY FOR A PARTICULAR PURPOSE. HIMSA shall not be liable for errors contained herein or for incidental consequential damages in connection with the supply of, performance of, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No parts of this document may be photocopied, reproduced or distributed to Non-HIMSA member companies. without the prior permission of HIMSA II  K/S Final Release / August 15 2011 REV 1 / August 9 2015 - Annotation updates only.  See new annotations for attributes ValidatedByNOAH and ConvertedFromDataStandard REV 2 / November 4 2019- Annotation updates only, note to use UTF-8 REV 3/ December 14 2020- Annotation updates only, note on UTF-8 and validation, BOM and use of additional namespaces
source	<xs:element name="HIMSAHitStandard">   <xs:annotation>     <xs:documentation>Important: All XML data must be encoded using UTF-8.  With Noah 4.13 and newer Noah validation rules will only allow UTF-8. Including a Byte Order Mark (BOM)is not necessary but considered acceptable Declaring and making use of additional XML Namespaces is not allowed.  Noah validation rules will reject the data if detected. With the format 200 both the REM and HIT data standards where defined in the same Header file.  While moving to XSD files with format 500 HIMSA decided to split the REM and HIT standards into separate XSD files but the same definitions exist. REV 3 (see REV History below) Copyright © 2012 HIMSA II  K/S The information in this document is subject to change according to the review policies established by HIMSA II. HIMSA II MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OR SUITABILITY FOR A PARTICULAR PURPOSE. HIMSA shall not be liable for errors contained herein or for incidental consequential damages in connection with the supply of, performance of, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No parts of this document may be photocopied, reproduced or distributed to Non-HIMSA member companies. without the prior permission of HIMSA II  K/S Final Release / August 15 2011 REV 1 / August 9 2015 - Annotation updates only.  See new annotations for attributes ValidatedByNOAH and ConvertedFromDataStandard REV 2 / November 4 2019- Annotation updates only, note to use UTF-8 REV 3/ December 14 2020- Annotation updates only, note on UTF-8 and validation, BOM and use of additional namespaces </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="HearingInstrumentTest">         <xs:annotation>           <xs:documentation>Defines structure for storing a Hearing Instrument Test. ##HitData##</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="SaturationResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Saturation Response ##spl90##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FullOnGain" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Full On Gain. It represents a calculated level in a 2CC coupler for hearing instrument with the volume control set to its full on position. ## FullOnGain ##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="FrequencyResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Frequency Response freqResp##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="BatteryMeasurement" type="BatteryCurrentMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Battery Measurement ##Battery##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="SecondThirdHarmonicDistortion" type="HarmonicDistortionMeasurementCurve" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Second and Third Harmonic Distortion Measurement ##harmDistortion##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="IntermodulationDistortionMeasurement" type="IntermodulationDistortionMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Intermodulation Distortion Measurement ##interDistortion##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="EquivalentInputNoiseMeasurement" type="EquivalentInputNoise" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Equivalent Input Noise Measurement ##equivInputNoise##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="InputOutput" type="InputOutputMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Input / Output Measurement ##ioMeas##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="AttackRecoverCurve" type="TargetMeasurement" minOccurs="0" maxOccurs="4">               <xs:annotation>                 <xs:documentation>Attack / Recover Curve measurement ##attackRecover##</xs:documentation>               </xs:annotation>             </xs:element>             <xs:element name="InductionCoil" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">               <xs:annotation>                 <xs:documentation>Audio Induction Coil Loop is one of the oldest forms of assisted listening technology in use today. These systems provide large area access to Hearing Instruments equipped with telecoil. ##inductionCoil##</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="PrivateHIT" type="xs:base64Binary" minOccurs="0">         <xs:annotation>           <xs:documentation>In the past it was allowed by HIMSA to save privately formatted data in the unused section of the public storage area of a NOAH action.  This usage was used mainly because more space was allocated for public storage versus private.  At present this is no longer an issue as equal storage is allocated to both public and private data storage. This elements primary function is to pass along any private data stored in the public area as base64 encoded data.  NOAH is not performing any translation or conversion of data. This data will never be converted back to an earlier version of a Audiogram data standard.  For example, if an HIT format 500 is saved with this element populated and then an older NOAH compatible fitting module tries to read the HIT (causing a conversion down to format 200) this data will be ignored by the converter process. </xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:attribute name="Version" use="required" fixed="500">       <xs:annotation>         <xs:documentation>Version of this data standard</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:integer"/>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="ValidatedByNOAH" type="xs:boolean" use="optional">       <xs:annotation>         <xs:documentation>This attribute is no longer in use.  The original intention was for Noah to fill in the value but the idea was never fully implemented and not needed.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="ConvertedFromDataStandard">       <xs:annotation>         <xs:documentation>Software saving data formatted via this XSD file should not use this element for storage.  The intention is for Noah data convertors to fill in an appropriate value for runtime conversions - not permanent storage. Please note that values less than 500 mean that the data was originally stored in a format which was not validated by Noah before storage.  This could mean that the data will not validated against this version</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:integer">           <xs:minInclusive value="100"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>   </xs:complexType> </xs:element>

attribute HIMSAHitStandard/@Version

type	restriction of xs:integer
properties	use  required fixed  500
annotation	documentation Version of this data standard
source	<xs:attribute name="Version" use="required" fixed="500">   <xs:annotation>     <xs:documentation>Version of this data standard</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer"/>   </xs:simpleType> </xs:attribute>

attribute HIMSAHitStandard/@ValidatedByNOAH

type	xs:boolean
properties	use  optional
annotation	documentation This attribute is no longer in use.  The original intention was for Noah to fill in the value but the idea was never fully implemented and not needed.
source	<xs:attribute name="ValidatedByNOAH" type="xs:boolean" use="optional">   <xs:annotation>     <xs:documentation>This attribute is no longer in use.  The original intention was for Noah to fill in the value but the idea was never fully implemented and not needed.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute HIMSAHitStandard/@ConvertedFromDataStandard

type	restriction of xs:integer
facets	Kind  Value  Annotation minInclusive  100
annotation	documentation Software saving data formatted via this XSD file should not use this element for storage.  The intention is for Noah data convertors to fill in an appropriate value for runtime conversions - not permanent storage. Please note that values less than 500 mean that the data was originally stored in a format which was not validated by Noah before storage.  This could mean that the data will not validated against this version
source	<xs:attribute name="ConvertedFromDataStandard">   <xs:annotation>     <xs:documentation>Software saving data formatted via this XSD file should not use this element for storage.  The intention is for Noah data convertors to fill in an appropriate value for runtime conversions - not permanent storage. Please note that values less than 500 mean that the data was originally stored in a format which was not validated by Noah before storage.  This could mean that the data will not validated against this version</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:integer">       <xs:minInclusive value="100"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

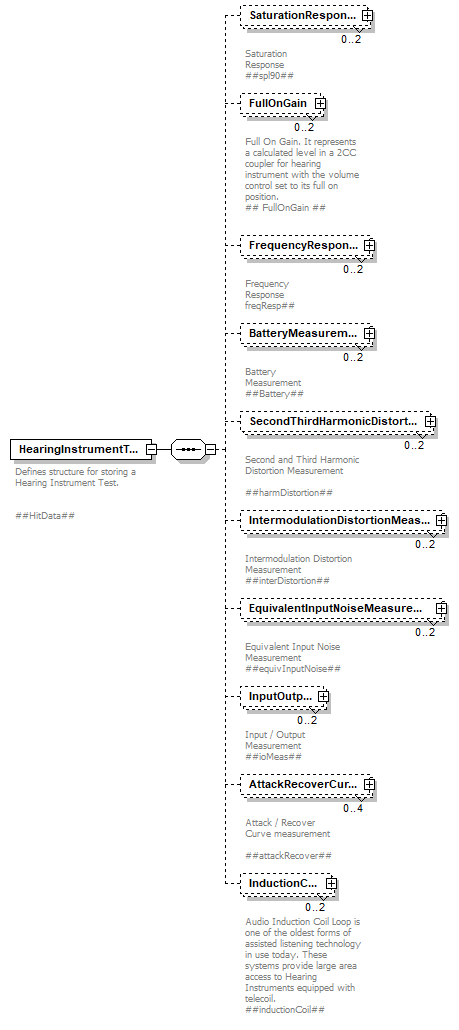

element HIMSAHitStandard/HearingInstrumentTest

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
properties	content  complex
children	SaturationResponse FullOnGain FrequencyResponse BatteryMeasurement SecondThirdHarmonicDistortion IntermodulationDistortionMeasurement EquivalentInputNoiseMeasurement InputOutput AttackRecoverCurve InductionCoil
annotation	documentation Defines structure for storing a Hearing Instrument Test. ##HitData##
source	<xs:element name="HearingInstrumentTest">   <xs:annotation>     <xs:documentation>Defines structure for storing a Hearing Instrument Test. ##HitData##</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="SaturationResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Saturation Response ##spl90##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="FullOnGain" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Full On Gain. It represents a calculated level in a 2CC coupler for hearing instrument with the volume control set to its full on position. ## FullOnGain ##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="FrequencyResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Frequency Response freqResp##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="BatteryMeasurement" type="BatteryCurrentMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Battery Measurement ##Battery##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="SecondThirdHarmonicDistortion" type="HarmonicDistortionMeasurementCurve" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Second and Third Harmonic Distortion Measurement ##harmDistortion##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="IntermodulationDistortionMeasurement" type="IntermodulationDistortionMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Intermodulation Distortion Measurement ##interDistortion##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="EquivalentInputNoiseMeasurement" type="EquivalentInputNoise" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Equivalent Input Noise Measurement ##equivInputNoise##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="InputOutput" type="InputOutputMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Input / Output Measurement ##ioMeas##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="AttackRecoverCurve" type="TargetMeasurement" minOccurs="0" maxOccurs="4">         <xs:annotation>           <xs:documentation>Attack / Recover Curve measurement ##attackRecover##</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="InductionCoil" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation>Audio Induction Coil Loop is one of the oldest forms of assisted listening technology in use today. These systems provide large area access to Hearing Instruments equipped with telecoil. ##inductionCoil##</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/SaturationResponse

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Saturation Response ##spl90##
source	<xs:element name="SaturationResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Saturation Response ##spl90##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/FullOnGain

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Full On Gain. It represents a calculated level in a 2CC coupler for hearing instrument with the volume control set to its full on position. ## FullOnGain ##
source	<xs:element name="FullOnGain" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Full On Gain. It represents a calculated level in a 2CC coupler for hearing instrument with the volume control set to its full on position. ## FullOnGain ##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/FrequencyResponse

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Frequency Response freqResp##
source	<xs:element name="FrequencyResponse" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Frequency Response freqResp##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/BatteryMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryCurrentMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	BatteryConditions BatteryCurve
annotation	documentation Battery Measurement ##Battery##
source	<xs:element name="BatteryMeasurement" type="BatteryCurrentMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Battery Measurement ##Battery##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/SecondThirdHarmonicDistortion

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	HarmonicDistortionMeasurementCurve
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Second and Third Harmonic Distortion Measurement ##harmDistortion##
source	<xs:element name="SecondThirdHarmonicDistortion" type="HarmonicDistortionMeasurementCurve" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Second and Third Harmonic Distortion Measurement ##harmDistortion##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/IntermodulationDistortionMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	IntermodulationDistortionMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementCondition Point
annotation	documentation Intermodulation Distortion Measurement ##interDistortion##
source	<xs:element name="IntermodulationDistortionMeasurement" type="IntermodulationDistortionMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Intermodulation Distortion Measurement ##interDistortion##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/EquivalentInputNoiseMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	EquivalentInputNoise
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point EquivalentRootMeanSquare
annotation	documentation Equivalent Input Noise Measurement ##equivInputNoise##
source	<xs:element name="EquivalentInputNoiseMeasurement" type="EquivalentInputNoise" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Equivalent Input Noise Measurement ##equivInputNoise##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/InputOutput

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	InputOutputMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Input / Output Measurement ##ioMeas##
source	<xs:element name="InputOutput" type="InputOutputMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Input / Output Measurement ##ioMeas##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/AttackRecoverCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	TargetMeasurement
properties	minOcc  0 maxOcc  4 content  complex
children	MeasurementConditions LevelStep AttackCurve ReleaseCurve
annotation	documentation Attack / Recover Curve measurement ##attackRecover##
source	<xs:element name="AttackRecoverCurve" type="TargetMeasurement" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation>Attack / Recover Curve measurement ##attackRecover##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/HearingInstrumentTest/InductionCoil

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurement
properties	minOcc  0 maxOcc  2 content  complex
children	MeasurementConditions Point
annotation	documentation Audio Induction Coil Loop is one of the oldest forms of assisted listening technology in use today. These systems provide large area access to Hearing Instruments equipped with telecoil. ##inductionCoil##
source	<xs:element name="InductionCoil" type="FrequencyMeasurement" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation>Audio Induction Coil Loop is one of the oldest forms of assisted listening technology in use today. These systems provide large area access to Hearing Instruments equipped with telecoil. ##inductionCoil##</xs:documentation>   </xs:annotation> </xs:element>

element HIMSAHitStandard/PrivateHIT

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:base64Binary
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation In the past it was allowed by HIMSA to save privately formatted data in the unused section of the public storage area of a NOAH action.  This usage was used mainly because more space was allocated for public storage versus private.  At present this is no longer an issue as equal storage is allocated to both public and private data storage. This elements primary function is to pass along any private data stored in the public area as base64 encoded data.  NOAH is not performing any translation or conversion of data. This data will never be converted back to an earlier version of a Audiogram data standard.  For example, if an HIT format 500 is saved with this element populated and then an older NOAH compatible fitting module tries to read the HIT (causing a conversion down to format 200) this data will be ignored by the converter process.
source	<xs:element name="PrivateHIT" type="xs:base64Binary" minOccurs="0">   <xs:annotation>     <xs:documentation>In the past it was allowed by HIMSA to save privately formatted data in the unused section of the public storage area of a NOAH action.  This usage was used mainly because more space was allocated for public storage versus private.  At present this is no longer an issue as equal storage is allocated to both public and private data storage. This elements primary function is to pass along any private data stored in the public area as base64 encoded data.  NOAH is not performing any translation or conversion of data. This data will never be converted back to an earlier version of a Audiogram data standard.  For example, if an HIT format 500 is saved with this element populated and then an older NOAH compatible fitting module tries to read the HIT (causing a conversion down to format 200) this data will be ignored by the converter process. </xs:documentation>   </xs:annotation> </xs:element>

complexType AttackReleaseMeasurementPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Output AttackReleaseTime
annotation	documentation A measurement point for Attack/Release measurements.  The time result (in milliseconds) is saved for the Attack and Release curve. ##TARMeasPoint##
source	<xs:complexType name="AttackReleaseMeasurementPoint">   <xs:annotation>     <xs:documentation>A measurement point for Attack/Release measurements.  The time result (in milliseconds) is saved for the Attack and Release curve. ##TARMeasPoint##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Output">       <xs:annotation>         <xs:documentation>Output Level Attack or Release curve. Component of the structure TARMeasPoint of type TdB10 (or centiBel). ##output##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:totalDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="AttackReleaseTime">       <xs:annotation>         <xs:documentation>Attack / Release time measured in milliseconds. The TARTime is defined Integer.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:minInclusive value=".000"/>           <xs:fractionDigits value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element AttackReleaseMeasurementPoint/Output

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation totalDigits  1
annotation	documentation Output Level Attack or Release curve. Component of the structure TARMeasPoint of type TdB10 (or centiBel). ##output##
source	<xs:element name="Output">   <xs:annotation>     <xs:documentation>Output Level Attack or Release curve. Component of the structure TARMeasPoint of type TdB10 (or centiBel). ##output##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:totalDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AttackReleaseMeasurementPoint/AttackReleaseTime

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation minInclusive  .000 fractionDigits  3
annotation	documentation Attack / Release time measured in milliseconds. The TARTime is defined Integer.
source	<xs:element name="AttackReleaseTime">   <xs:annotation>     <xs:documentation>Attack / Release time measured in milliseconds. The TARTime is defined Integer.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:minInclusive value=".000"/>       <xs:fractionDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType BatteryCurrentMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	BatteryConditions BatteryCurve
used by	element  HIMSAHitStandard/HearingInstrumentTest/BatteryMeasurement
annotation	documentation A complete curve containing a Battery Current measurement. ##TBatMeas##
source	<xs:complexType name="BatteryCurrentMeasurement">   <xs:annotation>     <xs:documentation>A complete curve containing a Battery Current measurement. ##TBatMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="BatteryConditions" type="BatteryMeasurementConditions">       <xs:annotation>         <xs:documentation>Measuring Conditions. ##measCond##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryCurve" type="BatteryMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation> ##batCrv##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

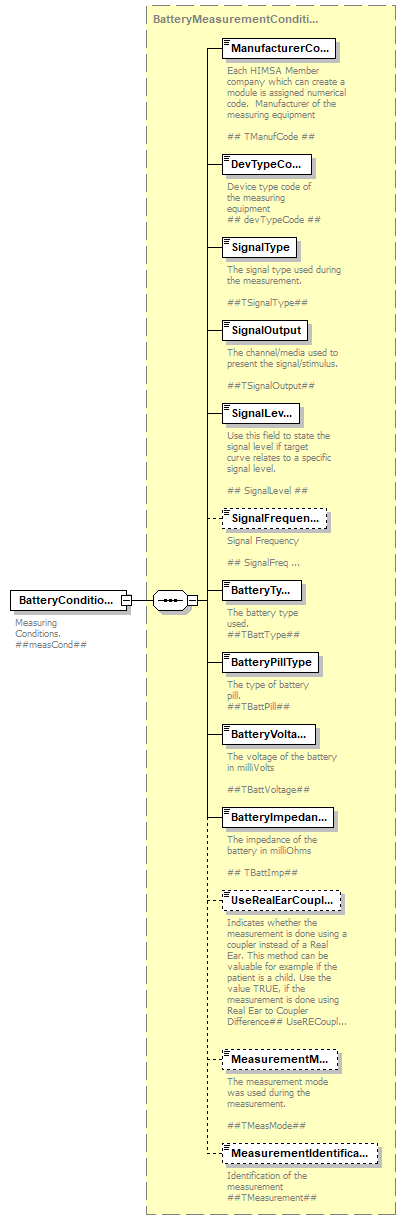

element BatteryCurrentMeasurement/BatteryConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryMeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation Measuring Conditions. ##measCond##
source	<xs:element name="BatteryConditions" type="BatteryMeasurementConditions">   <xs:annotation>     <xs:documentation>Measuring Conditions. ##measCond##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryCurrentMeasurement/BatteryCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Current
annotation	documentation ##batCrv##
source	<xs:element name="BatteryCurve" type="BatteryMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation> ##batCrv##</xs:documentation>   </xs:annotation> </xs:element>

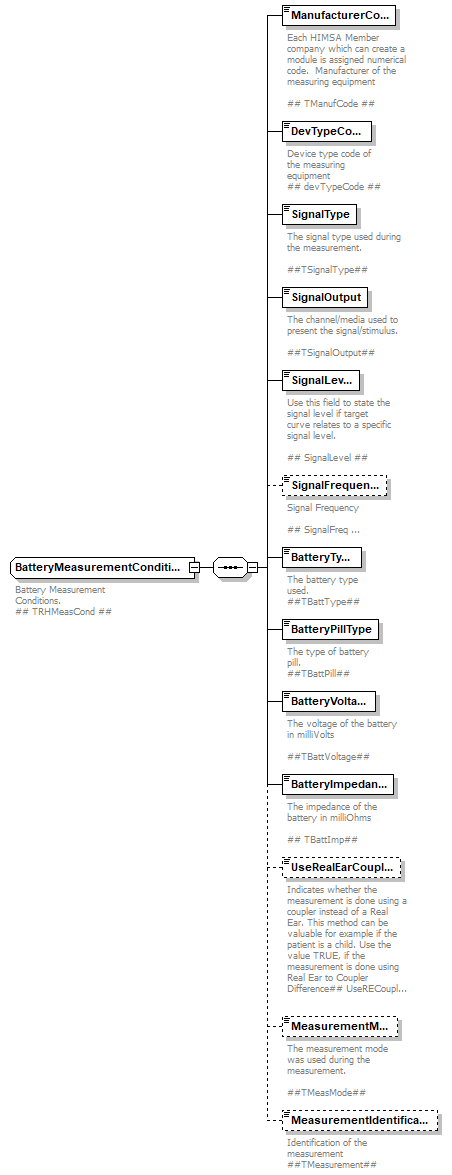

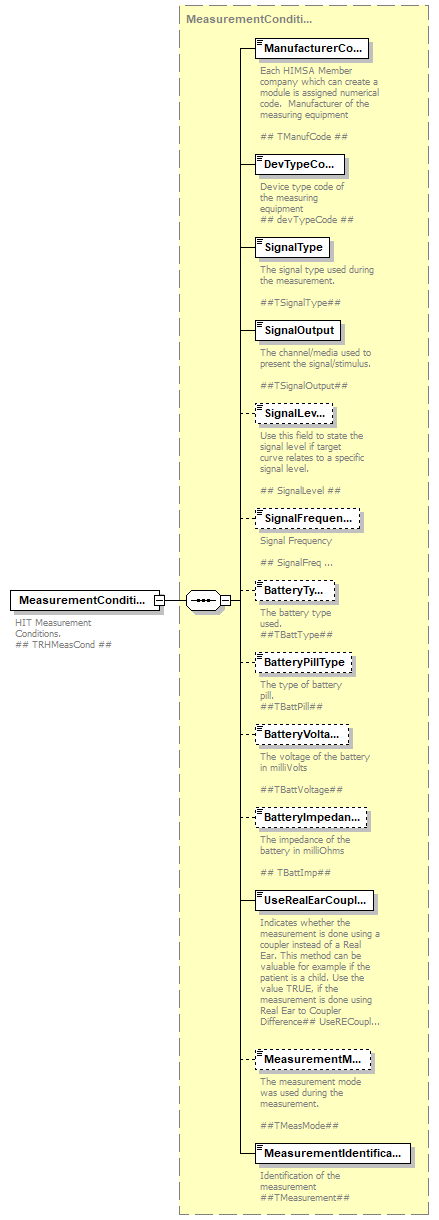

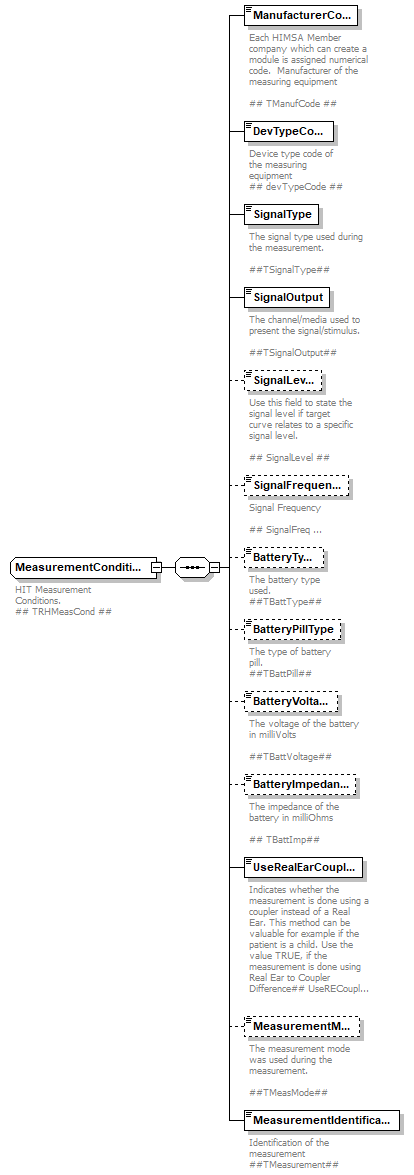

complexType BatteryMeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
used by	element  BatteryCurrentMeasurement/BatteryConditions
annotation	documentation Battery Measurement Conditions. ## TRHMeasCond ##
source	<xs:complexType name="BatteryMeasurementConditions">   <xs:annotation>     <xs:documentation>Battery Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ManufacturerCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ## </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DevTypeCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Device type code of the measuring equipment ## devTypeCode ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalType" type="SignalType">       <xs:annotation>         <xs:documentation>The signal type used during the measurement. ##TSignalType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalOutput" type="SignalOutputType">       <xs:annotation>         <xs:documentation>The channel/media used to present the signal/stimulus. ##TSignalOutput##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalLevel">       <xs:annotation>         <xs:documentation>Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="SignalFrequency" type="xs:integer" minOccurs="0">       <xs:annotation>         <xs:documentation>Signal Frequency ## SignalFreq ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryType" type="BatteryType">       <xs:annotation>         <xs:documentation>The battery type used. ##TBattType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryPillType" type="BatteryPillType">       <xs:annotation>         <xs:documentation>The type of battery pill. ##TBattPill##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryVoltage">       <xs:annotation>         <xs:documentation>The voltage of the battery in milliVolts ##TBattVoltage##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="BatteryImpedance">       <xs:annotation>         <xs:documentation>The impedance of the battery in milliOhms ## TBattImp##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="UseRealEarCoupler" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MeasurementMode" type="MeasurementMode" minOccurs="0">       <xs:annotation>         <xs:documentation>The measurement mode was used during the measurement. ##TMeasMode##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MeasurementIdentification" type="MeasurementIdentification" minOccurs="0">       <xs:annotation>         <xs:documentation>Identification of the measurement ##TMeasurement##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element BatteryMeasurementConditions/ManufacturerCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ##
source	<xs:element name="ManufacturerCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ## </xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/DevTypeCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Device type code of the measuring equipment ## devTypeCode ##
source	<xs:element name="DevTypeCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Device type code of the measuring equipment ## devTypeCode ##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/SignalType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	SignalType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Tone enumeration  Warble enumeration  NarrNoise enumeration  TwoTone enumeration  WhiteNoise enumeration  PinkNoise enumeration  SpeechNoise enumeration  Patient enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The signal type used during the measurement. ##TSignalType##
source	<xs:element name="SignalType" type="SignalType">   <xs:annotation>     <xs:documentation>The signal type used during the measurement. ##TSignalType##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/SignalOutput

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	SignalOutputType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  InternalBox enumeration  ExternalBox enumeration  FreeField enumeration  InternalBoxCoil enumeration  ExternalBoxCoil enumeration  FreeFieldInductionCoil enumeration  AirConduction enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The channel/media used to present the signal/stimulus. ##TSignalOutput##
source	<xs:element name="SignalOutput" type="SignalOutputType">   <xs:annotation>     <xs:documentation>The channel/media used to present the signal/stimulus. ##TSignalOutput##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/SignalLevel

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##
source	<xs:element name="SignalLevel">   <xs:annotation>     <xs:documentation>Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BatteryMeasurementConditions/SignalFrequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Signal Frequency ## SignalFreq ##
source	<xs:element name="SignalFrequency" type="xs:integer" minOccurs="0">   <xs:annotation>     <xs:documentation>Signal Frequency ## SignalFreq ##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/BatteryType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Mercury enumeration  ZincAir enumeration  OtherType enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The battery type used. ##TBattType##
source	<xs:element name="BatteryType" type="BatteryType">   <xs:annotation>     <xs:documentation>The battery type used. ##TBattType##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/BatteryPillType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryPillType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Battery312 enumeration  Battery13 enumeration  Battery230 enumeration  Battery675 enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The type of battery pill. ##TBattPill##
source	<xs:element name="BatteryPillType" type="BatteryPillType">   <xs:annotation>     <xs:documentation>The type of battery pill. ##TBattPill##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/BatteryVoltage

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  3
annotation	documentation The voltage of the battery in milliVolts ##TBattVoltage##
source	<xs:element name="BatteryVoltage">   <xs:annotation>     <xs:documentation>The voltage of the battery in milliVolts ##TBattVoltage##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BatteryMeasurementConditions/BatteryImpedance

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  3
annotation	documentation The impedance of the battery in milliOhms ## TBattImp##
source	<xs:element name="BatteryImpedance">   <xs:annotation>     <xs:documentation>The impedance of the battery in milliOhms ## TBattImp##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BatteryMeasurementConditions/UseRealEarCoupler

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##
source	<xs:element name="UseRealEarCoupler" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/MeasurementMode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementMode
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Sweep enumeration  FastFourierTransform enumeration  TimeMeasurement enumeration  Battery enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The measurement mode was used during the measurement. ##TMeasMode##
source	<xs:element name="MeasurementMode" type="MeasurementMode" minOccurs="0">   <xs:annotation>     <xs:documentation>The measurement mode was used during the measurement. ##TMeasMode##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementConditions/MeasurementIdentification

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementIdentification
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Audiometry enumeration  TargetCurve enumeration  UnaidedResponse enumeration  OccludedResponse enumeration  InsertionResponseCompensated enumeration  AidedResponse enumeration  InputOutput enumeration  HarmonicDistortion enumeration  OcclusionEffect enumeration  RealEarToCouplerDifference enumeration  XSPL90 enumeration  FullOnGain enumeration  FrequencyResponse enumeration  BatteryCurrent enumeration  IntermodulationDistortion enumeration  EquivalentInputNoise enumeration  AttackRecovery enumeration  InductionCoil enumeration  User1 enumeration  User2 enumeration  User3 enumeration  InsertionResponseUncompensated
annotation	documentation Identification of the measurement ##TMeasurement##
source	<xs:element name="MeasurementIdentification" type="MeasurementIdentification" minOccurs="0">   <xs:annotation>     <xs:documentation>Identification of the measurement ##TMeasurement##</xs:documentation>   </xs:annotation> </xs:element>

complexType BatteryMeasurementPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Frequency Current
used by	element  BatteryCurrentMeasurement/BatteryCurve
annotation	documentation A measurement point for Battery Current measurements. ## TBatMeasPoint; ##
source	<xs:complexType name="BatteryMeasurementPoint">   <xs:annotation>     <xs:documentation>A measurement point for Battery Current measurements. ## TBatMeasPoint; ## </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Frequency" type="xs:integer">       <xs:annotation>         <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Current">       <xs:annotation>         <xs:documentation>Hearing Instrument Battery Current measured in mA x 100 (Hundredths of milli- Ampere). </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="2"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element BatteryMeasurementPoint/Frequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation The frequency at which the measurement was done. ##freq##
source	<xs:element name="Frequency" type="xs:integer">   <xs:annotation>     <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>   </xs:annotation> </xs:element>

element BatteryMeasurementPoint/Current

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  2
annotation	documentation Hearing Instrument Battery Current measured in mA x 100 (Hundredths of milli- Ampere).
source	<xs:element name="Current">   <xs:annotation>     <xs:documentation>Hearing Instrument Battery Current measured in mA x 100 (Hundredths of milli- Ampere). </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType EquivalentInputNoise

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions Point EquivalentRootMeanSquare
used by	element  HIMSAHitStandard/HearingInstrumentTest/EquivalentInputNoiseMeasurement
annotation	documentation Equivalent Input Noise Measurement. In a test box, the Hearing Instrument (HI) is connected to a 2CC coupler. A reference microphone is placed close to the HI’s microphone. No signal is used. The noise floor in the test box is measured by the reference microphone and saved as input level, and the level delivered in the 2CC coupler by the HI is measured. The 2CC gain (measured earlier) is subtracted from the measured level and the result, saved as output, is called the Equivalent Input Noise. This noise is the noise floor plus the HI noise. The level should be at least at the input level, which is saved as an extra security. ##EINMeas##
source	<xs:complexType name="EquivalentInputNoise">   <xs:annotation>     <xs:documentation>Equivalent Input Noise Measurement. In a test box, the Hearing Instrument (HI) is connected to a 2CC coupler. A reference microphone is placed close to the HI’s microphone. No signal is used. The noise floor in the test box is measured by the reference microphone and saved as input level, and the level delivered in the 2CC coupler by the HI is measured. The 2CC gain (measured earlier) is subtracted from the measured level and the result, saved as output, is called the Equivalent Input Noise. This noise is the noise floor plus the HI noise. The level should be at least at the input level, which is saved as an extra security. ##EINMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Point" type="FrequencyMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation>Equivalent Input Noise Curve points ##einCrv##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="EquivalentRootMeanSquare">       <xs:annotation>         <xs:documentation>The curve points of the einCrv output curve are squared, summed and divided with the number of defined curve points. The square root of the result is saved as EINRMS (Root Mean Square). ##einRMS##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element EquivalentInputNoise/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element EquivalentInputNoise/Point

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Input Output
annotation	documentation Equivalent Input Noise Curve points ##einCrv##
source	<xs:element name="Point" type="FrequencyMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation>Equivalent Input Noise Curve points ##einCrv##</xs:documentation>   </xs:annotation> </xs:element>

element EquivalentInputNoise/EquivalentRootMeanSquare

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The curve points of the einCrv output curve are squared, summed and divided with the number of defined curve points. The square root of the result is saved as EINRMS (Root Mean Square). ##einRMS##
source	<xs:element name="EquivalentRootMeanSquare">   <xs:annotation>     <xs:documentation>The curve points of the einCrv output curve are squared, summed and divided with the number of defined curve points. The square root of the result is saved as EINRMS (Root Mean Square). ##einRMS##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType FrequencyMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions Point
used by	elements  HIMSAHitStandard/HearingInstrumentTest/FrequencyResponse HIMSAHitStandard/HearingInstrumentTest/FullOnGain HIMSAHitStandard/HearingInstrumentTest/InductionCoil HIMSAHitStandard/HearingInstrumentTest/SaturationResponse
annotation	documentation Generic two-channel frequency response type measurement ## TFreqMeas ##
source	<xs:complexType name="FrequencyMeasurement">   <xs:annotation>     <xs:documentation>Generic two-channel frequency response type measurement ## TFreqMeas ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Point" type="FrequencyMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation> ## TFreqMeasPoint ##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element FrequencyMeasurement/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element FrequencyMeasurement/Point

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Input Output
annotation	documentation ## TFreqMeasPoint ##
source	<xs:element name="Point" type="FrequencyMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation> ## TFreqMeasPoint ##</xs:documentation>   </xs:annotation> </xs:element>

complexType FrequencyMeasurementPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Frequency Input Output
used by	elements  EquivalentInputNoise/Point FrequencyMeasurement/Point RealEarCouplerDifference/RECD OcclusionEffects/REOR OcclusionEffects/REUR
annotation	documentation ## TFreqMeasPoint ##
source	<xs:complexType name="FrequencyMeasurementPoint">   <xs:annotation>     <xs:documentation> ## TFreqMeasPoint ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Frequency" type="xs:integer">       <xs:annotation>         <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Input">       <xs:annotation>         <xs:documentation>Signal Input Level. ##input##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Output">       <xs:annotation>         <xs:documentation>Signal Output Level ##output##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element FrequencyMeasurementPoint/Frequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation The frequency at which the measurement was done. ##freq##
source	<xs:element name="Frequency" type="xs:integer">   <xs:annotation>     <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>   </xs:annotation> </xs:element>

element FrequencyMeasurementPoint/Input

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Signal Input Level. ##input##
source	<xs:element name="Input">   <xs:annotation>     <xs:documentation>Signal Input Level. ##input##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FrequencyMeasurementPoint/Output

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Signal Output Level ##output##
source	<xs:element name="Output">   <xs:annotation>     <xs:documentation>Signal Output Level ##output##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

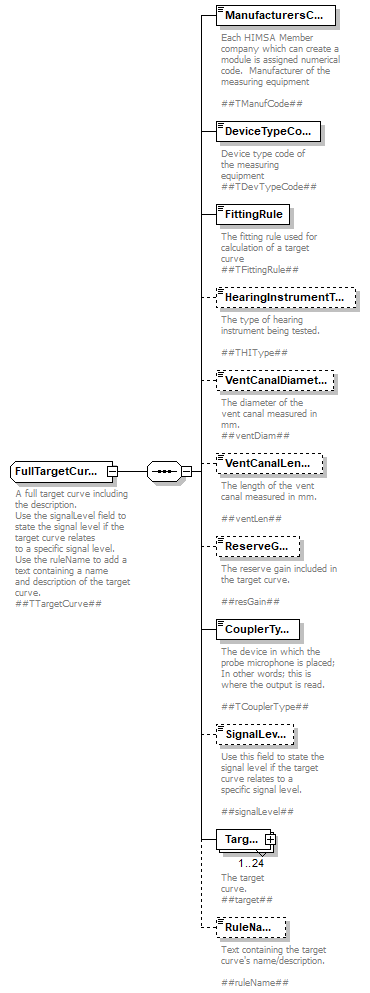

complexType FullTargetCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	ManufacturersCode DeviceTypeCode FittingRule HearingInstrumentType VentCanalDiameter VentCanalLength ReserveGain CouplerType SignalLevel Target RuleName
annotation	documentation A full target curve including the description. Use the signalLevel field to state the signal level if the target curve relates to a specific signal level. Use the ruleName to add a text containing a name and description of the target curve. ##TTargetCurve##
source	<xs:complexType name="FullTargetCurve">   <xs:annotation>     <xs:documentation>A full target curve including the description. Use the signalLevel field to state the signal level if the target curve relates to a specific signal level. Use the ruleName to add a text containing a name and description of the target curve. ##TTargetCurve##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ManufacturersCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ##TManufCode##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DeviceTypeCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Device type code of the measuring equipment ##TDevTypeCode##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FittingRule" type="FittingRule">       <xs:annotation>         <xs:documentation>The fitting rule used for calculation of a target curve ##TFittingRule##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="HearingInstrumentType" type="HearingInstrumentType" minOccurs="0">       <xs:annotation>         <xs:documentation>The type of hearing instrument being tested. ##THIType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="VentCanalDiameter" minOccurs="0">       <xs:annotation>         <xs:documentation>The diameter of the vent canal measured in mm. ##ventDiam##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="VentCanalLength" minOccurs="0">       <xs:annotation>         <xs:documentation>The length of the vent canal measured in mm. ##ventLen##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ReserveGain" minOccurs="0">       <xs:annotation>         <xs:documentation>The reserve gain included in the target curve. ##resGain##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="CouplerType" type="CouplerType">       <xs:annotation>         <xs:documentation>The device in which the probe microphone is placed; In other words; this is where the output is read. ##TCouplerType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalLevel" minOccurs="0">       <xs:annotation>         <xs:documentation>Use this field to state the signal level if the target curve relates to a specific signal level. ##signalLevel##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Target" type="TargetPoint" maxOccurs="24">       <xs:annotation>         <xs:documentation>The target curve. ##target##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RuleName" minOccurs="0">       <xs:annotation>         <xs:documentation>Text containing the target curve's name/description. ##ruleName##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="51"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element FullTargetCurve/ManufacturersCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ##TManufCode##
source	<xs:element name="ManufacturersCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ##TManufCode##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/DeviceTypeCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Device type code of the measuring equipment ##TDevTypeCode##
source	<xs:element name="DeviceTypeCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Device type code of the measuring equipment ##TDevTypeCode##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/FittingRule

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FittingRule
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  POGO enumeration  POGOII enumeration  NAL enumeration  NALProf enumeration  Berger enumeration  HalfGain enumeration  ThirdGain enumeration  DSL enumeration  LIBBY enumeration  Byrne enumeration  CoxMSU enumeration  User1 enumeration  User2 enumeration  User3 enumeration  User4 enumeration  User5 enumeration  User6 enumeration  User7 enumeration  User8 enumeration  User9 enumeration  User10
annotation	documentation The fitting rule used for calculation of a target curve ##TFittingRule##
source	<xs:element name="FittingRule" type="FittingRule">   <xs:annotation>     <xs:documentation>The fitting rule used for calculation of a target curve ##TFittingRule##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/HearingInstrumentType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	HearingInstrumentType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  ITE enumeration  BTE enumeration  ITC enumeration  MITC enumeration  Body enumeration  User1 enumeration  User2 enumeration  User3 enumeration  User4 enumeration  User5
annotation	documentation The type of hearing instrument being tested. ##THIType##
source	<xs:element name="HearingInstrumentType" type="HearingInstrumentType" minOccurs="0">   <xs:annotation>     <xs:documentation>The type of hearing instrument being tested. ##THIType##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/VentCanalDiameter

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The diameter of the vent canal measured in mm. ##ventDiam##
source	<xs:element name="VentCanalDiameter" minOccurs="0">   <xs:annotation>     <xs:documentation>The diameter of the vent canal measured in mm. ##ventDiam##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FullTargetCurve/VentCanalLength

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The length of the vent canal measured in mm. ##ventLen##
source	<xs:element name="VentCanalLength" minOccurs="0">   <xs:annotation>     <xs:documentation>The length of the vent canal measured in mm. ##ventLen##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FullTargetCurve/ReserveGain

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The reserve gain included in the target curve. ##resGain##
source	<xs:element name="ReserveGain" minOccurs="0">   <xs:annotation>     <xs:documentation>The reserve gain included in the target curve. ##resGain##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FullTargetCurve/CouplerType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	CouplerType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  RealEar enumeration  Coupler711 enumeration  Coupler2cc enumeration  FreiburgerConicalCoupler enumeration  FreiburgerConicalChildrenCoupler enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The device in which the probe microphone is placed; In other words; this is where the output is read. ##TCouplerType##
source	<xs:element name="CouplerType" type="CouplerType">   <xs:annotation>     <xs:documentation>The device in which the probe microphone is placed; In other words; this is where the output is read. ##TCouplerType##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/SignalLevel

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Use this field to state the signal level if the target curve relates to a specific signal level. ##signalLevel##
source	<xs:element name="SignalLevel" minOccurs="0">   <xs:annotation>     <xs:documentation>Use this field to state the signal level if the target curve relates to a specific signal level. ##signalLevel##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element FullTargetCurve/Target

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	TargetPoint
properties	minOcc  1 maxOcc  24 content  complex
children	TargetFrequency TargetGain
annotation	documentation The target curve. ##target##
source	<xs:element name="Target" type="TargetPoint" maxOccurs="24">   <xs:annotation>     <xs:documentation>The target curve. ##target##</xs:documentation>   </xs:annotation> </xs:element>

element FullTargetCurve/RuleName

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  51
annotation	documentation Text containing the target curve's name/description. ##ruleName##
source	<xs:element name="RuleName" minOccurs="0">   <xs:annotation>     <xs:documentation>Text containing the target curve's name/description. ##ruleName##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="51"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType HarmonicDistortionMeasurementCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions Point
used by	element  HIMSAHitStandard/HearingInstrumentTest/SecondThirdHarmonicDistortion
annotation	documentation A complete curve containing a Harmonic Distortion measurement. The harmonic distortion is saved in this structure based on measurements of the distortion level at 2 * base frequency and 3* base frequency. It is calculated as the ratio of the total value of the harmonics and the base frequency. Ref. [HOCA]. Harmonic Distortion measured in a 2CC coupler has long been an element of ANSI standards of hearing aid performance. When measured in a Real Ear the distortion level rises considerably, although it is not fully understood why. Ref. [Mueller]. ##TTHDDistMeas##
source	<xs:complexType name="HarmonicDistortionMeasurementCurve">   <xs:annotation>     <xs:documentation>A complete curve containing a Harmonic Distortion measurement. The harmonic distortion is saved in this structure based on measurements of the distortion level at 2 * base frequency and 3* base frequency. It is calculated as the ratio of the total value of the harmonics and the base frequency. Ref. [HOCA]. Harmonic Distortion measured in a 2CC coupler has long been an element of ANSI standards of hearing aid performance. When measured in a Real Ear the distortion level rises considerably, although it is not fully understood why. Ref. [Mueller]. ##TTHDDistMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Point" type="HarmonicDistortionPoint" maxOccurs="161">       <xs:annotation>         <xs:documentation>Curve of Intermodulation or Harmonic Distortion curve points: ##distCrv##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element HarmonicDistortionMeasurementCurve/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element HarmonicDistortionMeasurementCurve/Point

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	HarmonicDistortionPoint
properties	minOcc  1 maxOcc  161 content  complex
children	Frequency Input Fx1 Fx2 Fx3 ThirdHD
annotation	documentation Curve of Intermodulation or Harmonic Distortion curve points: ##distCrv##
source	<xs:element name="Point" type="HarmonicDistortionPoint" maxOccurs="161">   <xs:annotation>     <xs:documentation>Curve of Intermodulation or Harmonic Distortion curve points: ##distCrv##</xs:documentation>   </xs:annotation> </xs:element>

complexType HarmonicDistortionPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Frequency Input Fx1 Fx2 Fx3 ThirdHD
used by	element  HarmonicDistortionMeasurementCurve/Point
annotation	documentation a single measurement point for Harmonic Distortion Measurements. ## TTHDDistMeasPoint ##
source	<xs:complexType name="HarmonicDistortionPoint">   <xs:annotation>     <xs:documentation>a single measurement point for Harmonic Distortion Measurements. ## TTHDDistMeasPoint ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Frequency" type="xs:integer">       <xs:annotation>         <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Input">       <xs:annotation>         <xs:documentation>Signal Input Level ##input##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Fx1">       <xs:annotation>         <xs:documentation>Output level at base frequency. ##output1Harm##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Fx2">       <xs:annotation>         <xs:documentation>Output level at 2 * base frequency. ##output2Harm##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Fx3">       <xs:annotation>         <xs:documentation>Output level at 3* base frequency. ##ouput3Harm##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ThirdHD">       <xs:annotation>         <xs:documentation>The calculated Third Harmonic Distortion based on the Output 1 and 3 levels. ##thdPct##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="2"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element HarmonicDistortionPoint/Frequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation The frequency at which the measurement was done. ##freq##
source	<xs:element name="Frequency" type="xs:integer">   <xs:annotation>     <xs:documentation>The frequency at which the measurement was done. ##freq##</xs:documentation>   </xs:annotation> </xs:element>

element HarmonicDistortionPoint/Input

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Signal Input Level ##input##
source	<xs:element name="Input">   <xs:annotation>     <xs:documentation>Signal Input Level ##input##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HarmonicDistortionPoint/Fx1

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output level at base frequency. ##output1Harm##
source	<xs:element name="Fx1">   <xs:annotation>     <xs:documentation>Output level at base frequency. ##output1Harm##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HarmonicDistortionPoint/Fx2

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output level at 2 * base frequency. ##output2Harm##
source	<xs:element name="Fx2">   <xs:annotation>     <xs:documentation>Output level at 2 * base frequency. ##output2Harm##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HarmonicDistortionPoint/Fx3

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output level at 3* base frequency. ##ouput3Harm##
source	<xs:element name="Fx3">   <xs:annotation>     <xs:documentation>Output level at 3* base frequency. ##ouput3Harm##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element HarmonicDistortionPoint/ThirdHD

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  2
annotation	documentation The calculated Third Harmonic Distortion based on the Output 1 and 3 levels. ##thdPct##
source	<xs:element name="ThirdHD">   <xs:annotation>     <xs:documentation>The calculated Third Harmonic Distortion based on the Output 1 and 3 levels. ##thdPct##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType InputOutputMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions Point
used by	element  HIMSAHitStandard/HearingInstrumentTest/InputOutput
annotation	documentation Input / Output Measurement. A Component of the outer structure HitData. ##TIOMeas##
source	<xs:complexType name="InputOutputMeasurement">   <xs:annotation>     <xs:documentation>Input / Output Measurement. A Component of the outer structure HitData. ##TIOMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Point" type="InputOutputPoint" maxOccurs="61">       <xs:annotation>         <xs:documentation>Input / Output Measurement Point. ##TIOMeasPoint##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element InputOutputMeasurement/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element InputOutputMeasurement/Point

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	InputOutputPoint
properties	minOcc  1 maxOcc  61 content  complex
children	Input Output
annotation	documentation Input / Output Measurement Point. ##TIOMeasPoint##
source	<xs:element name="Point" type="InputOutputPoint" maxOccurs="61">   <xs:annotation>     <xs:documentation>Input / Output Measurement Point. ##TIOMeasPoint##</xs:documentation>   </xs:annotation> </xs:element>

complexType InputOutputPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Input Output
used by	element  InputOutputMeasurement/Point
annotation	documentation a measurement point for Input/Output measurements, Note: no frequency information in single points. This is common for all the measurement points and the value is stated in MeasCond. ## TIOMeasPoint; ##
source	<xs:complexType name="InputOutputPoint">   <xs:annotation>     <xs:documentation>a measurement point for Input/Output measurements, Note: no frequency information in single points. This is common for all the measurement points and the value is stated in MeasCond. ## TIOMeasPoint; ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Input">       <xs:annotation>         <xs:documentation>Signal Input Level ##input##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Output">       <xs:annotation>         <xs:documentation>Signal Output Level ##output##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element InputOutputPoint/Input

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Signal Input Level ##input##
source	<xs:element name="Input">   <xs:annotation>     <xs:documentation>Signal Input Level ##input##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element InputOutputPoint/Output

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Signal Output Level ##output##
source	<xs:element name="Output">   <xs:annotation>     <xs:documentation>Signal Output Level ##output##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType IntermodulationDistortionMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementCondition Point
used by	element  HIMSAHitStandard/HearingInstrumentTest/IntermodulationDistortionMeasurement
annotation	documentation A complete curve containing an Intermodulation Distortion measurement. The Intermodulation Distortion (IM) (difference-frequency) is the ratio of the power of the output signal at frequencies other than those delivered to the Hearing Instrument (HI) to the power of the signals that were applied to the HI. It includes the tones Freq2-Freq1 and 2*Freq1 - Freq2. ##TTIMDistMeas##
source	<xs:complexType name="IntermodulationDistortionMeasurement">   <xs:annotation>     <xs:documentation>A complete curve containing an Intermodulation Distortion measurement. The Intermodulation Distortion (IM) (difference-frequency) is the ratio of the power of the output signal at frequencies other than those delivered to the Hearing Instrument (HI) to the power of the signals that were applied to the HI. It includes the tones Freq2-Freq1 and 2*Freq1 - Freq2. ##TTIMDistMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementCondition" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Point" type="IntermodulationDistortionPoint" maxOccurs="161"/>   </xs:sequence> </xs:complexType>

element IntermodulationDistortionMeasurement/MeasurementCondition

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementCondition" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element IntermodulationDistortionMeasurement/Point

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	IntermodulationDistortionPoint
properties	minOcc  1 maxOcc  161 content  complex
children	Freq1 Freq2 Input1 Input2 Output1 Output2 OutputDiff1 OutputDiff2 TIDistortion
source	<xs:element name="Point" type="IntermodulationDistortionPoint" maxOccurs="161"/>

complexType IntermodulationDistortionPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Freq1 Freq2 Input1 Input2 Output1 Output2 OutputDiff1 OutputDiff2 TIDistortion
used by	element  IntermodulationDistortionMeasurement/Point
annotation	documentation A single measurement point for Intermodulation  Distortion Measurements ## TTIMDistMeasPoint; ##
source	<xs:complexType name="IntermodulationDistortionPoint">   <xs:annotation>     <xs:documentation>A single measurement point for Intermodulation  Distortion Measurements ## TTIMDistMeasPoint; ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Freq1" type="xs:integer">       <xs:annotation>         <xs:documentation>First stimulation frequency. ##freq1##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Freq2" type="xs:integer">       <xs:annotation>         <xs:documentation>Second stimulation frequency. ##freq2##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Input1">       <xs:annotation>         <xs:documentation>The Signal No. 1 Input Level. ##input1##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Input2">       <xs:annotation>         <xs:documentation>The Signal No. 2 Input Level. ##input2##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Output1">       <xs:annotation>         <xs:documentation>Output Level at Freq1. ##output1##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Output2">       <xs:annotation>         <xs:documentation>Output Level at Freq2. ##output2##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="OutputDiff1">       <xs:annotation>         <xs:documentation>Output Level SecondStimulationFrequency - FirstStimulationFrequency ##outputDif1##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="OutputDiff2">       <xs:annotation>         <xs:documentation>Output Level 2X FirstStimulationFrequency - SecondStimulationFrequency ##outputDif2##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="TIDistortion">       <xs:annotation>         <xs:documentation>Total Intermodulation Distortion expressed as a  percentage ## TIMPct ##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="2"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element IntermodulationDistortionPoint/Freq1

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation First stimulation frequency. ##freq1##
source	<xs:element name="Freq1" type="xs:integer">   <xs:annotation>     <xs:documentation>First stimulation frequency. ##freq1##</xs:documentation>   </xs:annotation> </xs:element>

element IntermodulationDistortionPoint/Freq2

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Second stimulation frequency. ##freq2##
source	<xs:element name="Freq2" type="xs:integer">   <xs:annotation>     <xs:documentation>Second stimulation frequency. ##freq2##</xs:documentation>   </xs:annotation> </xs:element>

element IntermodulationDistortionPoint/Input1

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The Signal No. 1 Input Level. ##input1##
source	<xs:element name="Input1">   <xs:annotation>     <xs:documentation>The Signal No. 1 Input Level. ##input1##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/Input2

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation The Signal No. 2 Input Level. ##input2##
source	<xs:element name="Input2">   <xs:annotation>     <xs:documentation>The Signal No. 2 Input Level. ##input2##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/Output1

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output Level at Freq1. ##output1##
source	<xs:element name="Output1">   <xs:annotation>     <xs:documentation>Output Level at Freq1. ##output1##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/Output2

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output Level at Freq2. ##output2##
source	<xs:element name="Output2">   <xs:annotation>     <xs:documentation>Output Level at Freq2. ##output2##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/OutputDiff1

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output Level SecondStimulationFrequency - FirstStimulationFrequency ##outputDif1##
source	<xs:element name="OutputDiff1">   <xs:annotation>     <xs:documentation>Output Level SecondStimulationFrequency - FirstStimulationFrequency ##outputDif1##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/OutputDiff2

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output Level 2X FirstStimulationFrequency - SecondStimulationFrequency ##outputDif2##
source	<xs:element name="OutputDiff2">   <xs:annotation>     <xs:documentation>Output Level 2X FirstStimulationFrequency - SecondStimulationFrequency ##outputDif2##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element IntermodulationDistortionPoint/TIDistortion

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  2
annotation	documentation Total Intermodulation Distortion expressed as a  percentage ## TIMPct ##
source	<xs:element name="TIDistortion">   <xs:annotation>     <xs:documentation>Total Intermodulation Distortion expressed as a  percentage ## TIMPct ##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="2"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
used by	elements  IntermodulationDistortionMeasurement/MeasurementCondition TargetMeasurement/MeasurementConditions EquivalentInputNoise/MeasurementConditions InputOutputMeasurement/MeasurementConditions RealEarCouplerDifference/MeasurementConditions OcclusionEffects/MeasurementConditions HarmonicDistortionMeasurementCurve/MeasurementConditions FrequencyMeasurement/MeasurementConditions
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:complexType name="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ManufacturerCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ## </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DevTypeCode" type="xs:integer">       <xs:annotation>         <xs:documentation>Device type code of the measuring equipment ## devTypeCode ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalType" type="SignalType">       <xs:annotation>         <xs:documentation>The signal type used during the measurement. ##TSignalType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalOutput" type="SignalOutputType">       <xs:annotation>         <xs:documentation>The channel/media used to present the signal/stimulus. ##TSignalOutput##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SignalLevel" minOccurs="0">       <xs:annotation>         <xs:documentation>Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="SignalFrequency" type="xs:integer" minOccurs="0">       <xs:annotation>         <xs:documentation>Signal Frequency ## SignalFreq ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryType" type="BatteryType" minOccurs="0">       <xs:annotation>         <xs:documentation>The battery type used. ##TBattType##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryPillType" type="BatteryPillType" minOccurs="0">       <xs:annotation>         <xs:documentation>The type of battery pill. ##TBattPill##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatteryVoltage" minOccurs="0">       <xs:annotation>         <xs:documentation>The voltage of the battery in milliVolts ##TBattVoltage##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="BatteryImpedance" minOccurs="0">       <xs:annotation>         <xs:documentation>The impedance of the battery in milliOhms ## TBattImp##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="3"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="UseRealEarCoupler" type="xs:boolean">       <xs:annotation>         <xs:documentation>Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MeasurementMode" type="MeasurementMode" minOccurs="0">       <xs:annotation>         <xs:documentation>The measurement mode was used during the measurement. ##TMeasMode##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MeasurementIdentification" type="MeasurementIdentification">       <xs:annotation>         <xs:documentation>Identification of the measurement ##TMeasurement##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element MeasurementConditions/ManufacturerCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ##
source	<xs:element name="ManufacturerCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Each HIMSA Member company which can create a module is assigned numerical code.  Manufacturer of the measuring equipment ## TManufCode ## </xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/DevTypeCode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Device type code of the measuring equipment ## devTypeCode ##
source	<xs:element name="DevTypeCode" type="xs:integer">   <xs:annotation>     <xs:documentation>Device type code of the measuring equipment ## devTypeCode ##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/SignalType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	SignalType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Tone enumeration  Warble enumeration  NarrNoise enumeration  TwoTone enumeration  WhiteNoise enumeration  PinkNoise enumeration  SpeechNoise enumeration  Patient enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The signal type used during the measurement. ##TSignalType##
source	<xs:element name="SignalType" type="SignalType">   <xs:annotation>     <xs:documentation>The signal type used during the measurement. ##TSignalType##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/SignalOutput

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	SignalOutputType
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  InternalBox enumeration  ExternalBox enumeration  FreeField enumeration  InternalBoxCoil enumeration  ExternalBoxCoil enumeration  FreeFieldInductionCoil enumeration  AirConduction enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The channel/media used to present the signal/stimulus. ##TSignalOutput##
source	<xs:element name="SignalOutput" type="SignalOutputType">   <xs:annotation>     <xs:documentation>The channel/media used to present the signal/stimulus. ##TSignalOutput##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/SignalLevel

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##
source	<xs:element name="SignalLevel" minOccurs="0">   <xs:annotation>     <xs:documentation>Use this field to state the signal level if target curve relates to a specific signal level. ## SignalLevel ##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element MeasurementConditions/SignalFrequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Signal Frequency ## SignalFreq ##
source	<xs:element name="SignalFrequency" type="xs:integer" minOccurs="0">   <xs:annotation>     <xs:documentation>Signal Frequency ## SignalFreq ##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/BatteryType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Mercury enumeration  ZincAir enumeration  OtherType enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The battery type used. ##TBattType##
source	<xs:element name="BatteryType" type="BatteryType" minOccurs="0">   <xs:annotation>     <xs:documentation>The battery type used. ##TBattType##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/BatteryPillType

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	BatteryPillType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Battery312 enumeration  Battery13 enumeration  Battery230 enumeration  Battery675 enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The type of battery pill. ##TBattPill##
source	<xs:element name="BatteryPillType" type="BatteryPillType" minOccurs="0">   <xs:annotation>     <xs:documentation>The type of battery pill. ##TBattPill##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/BatteryVoltage

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  3
annotation	documentation The voltage of the battery in milliVolts ##TBattVoltage##
source	<xs:element name="BatteryVoltage" minOccurs="0">   <xs:annotation>     <xs:documentation>The voltage of the battery in milliVolts ##TBattVoltage##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element MeasurementConditions/BatteryImpedance

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation fractionDigits  3
annotation	documentation The impedance of the battery in milliOhms ## TBattImp##
source	<xs:element name="BatteryImpedance" minOccurs="0">   <xs:annotation>     <xs:documentation>The impedance of the battery in milliOhms ## TBattImp##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="3"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element MeasurementConditions/UseRealEarCoupler

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:boolean
properties	content  simple
annotation	documentation Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##
source	<xs:element name="UseRealEarCoupler" type="xs:boolean">   <xs:annotation>     <xs:documentation>Indicates whether the measurement is done using a coupler instead of a Real Ear. This method can be valuable for example if the patient is a child. Use the value TRUE, if the measurement is done using Real Ear to Coupler Difference ## UseRECoupler  ##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/MeasurementMode

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementMode
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Sweep enumeration  FastFourierTransform enumeration  TimeMeasurement enumeration  Battery enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The measurement mode was used during the measurement. ##TMeasMode##
source	<xs:element name="MeasurementMode" type="MeasurementMode" minOccurs="0">   <xs:annotation>     <xs:documentation>The measurement mode was used during the measurement. ##TMeasMode##</xs:documentation>   </xs:annotation> </xs:element>

element MeasurementConditions/MeasurementIdentification

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementIdentification
properties	content  simple
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Audiometry enumeration  TargetCurve enumeration  UnaidedResponse enumeration  OccludedResponse enumeration  InsertionResponseCompensated enumeration  AidedResponse enumeration  InputOutput enumeration  HarmonicDistortion enumeration  OcclusionEffect enumeration  RealEarToCouplerDifference enumeration  XSPL90 enumeration  FullOnGain enumeration  FrequencyResponse enumeration  BatteryCurrent enumeration  IntermodulationDistortion enumeration  EquivalentInputNoise enumeration  AttackRecovery enumeration  InductionCoil enumeration  User1 enumeration  User2 enumeration  User3 enumeration  InsertionResponseUncompensated
annotation	documentation Identification of the measurement ##TMeasurement##
source	<xs:element name="MeasurementIdentification" type="MeasurementIdentification">   <xs:annotation>     <xs:documentation>Identification of the measurement ##TMeasurement##</xs:documentation>   </xs:annotation> </xs:element>

complexType OcclusionEffects

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions REUR REOR
annotation	documentation Occlusion Effects, comparison between the response of the unoccluded ear with the response of the occluded ear. ##TOcclMeas##
source	<xs:complexType name="OcclusionEffects">   <xs:annotation>     <xs:documentation>Occlusion Effects, comparison between the response of the unoccluded ear with the response of the occluded ear. ##TOcclMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ##TRHMeasCond</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="REUR" type="FrequencyMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation>The response of the unoccluded ear, no compensation in input or output. ##OpenEarCrv##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="REOR" type="FrequencyMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation>The response of the occluded ear, no compensation in input or output. ##OccEarCrv##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element OcclusionEffects/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ##TRHMeasCond
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ##TRHMeasCond</xs:documentation>   </xs:annotation> </xs:element>

element OcclusionEffects/REUR

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Input Output
annotation	documentation The response of the unoccluded ear, no compensation in input or output. ##OpenEarCrv##
source	<xs:element name="REUR" type="FrequencyMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation>The response of the unoccluded ear, no compensation in input or output. ##OpenEarCrv##</xs:documentation>   </xs:annotation> </xs:element>

element OcclusionEffects/REOR

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Input Output
annotation	documentation The response of the occluded ear, no compensation in input or output. ##OccEarCrv##
source	<xs:element name="REOR" type="FrequencyMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation>The response of the occluded ear, no compensation in input or output. ##OccEarCrv##</xs:documentation>   </xs:annotation> </xs:element>

complexType RealEarCouplerDifference

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions RECD
annotation	documentation The Real Ear to Coupler Difference measurement yields the gain (output minus input), where the result gives the difference between a measurement in a coupler and a measurement in the Client's ear. As both parts of this measurement are performed with the same measurement conditions, the curve can be used in a manner with the input part holding the coupler SPL output curve, and the output part holding the Real ear SPL output curve. This will yield the correct gain value. ##TRECMeas##
source	<xs:complexType name="RealEarCouplerDifference">   <xs:annotation>     <xs:documentation>The Real Ear to Coupler Difference measurement yields the gain (output minus input), where the result gives the difference between a measurement in a coupler and a measurement in the Client's ear. As both parts of this measurement are performed with the same measurement conditions, the curve can be used in a manner with the input part holding the coupler SPL output curve, and the output part holding the Real ear SPL output curve. This will yield the correct gain value. ##TRECMeas##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ##TRHMeasCond</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RECD" type="FrequencyMeasurementPoint" maxOccurs="169">       <xs:annotation>         <xs:documentation>Real Ear to Coupler Difference measurement As input and output are performed with the same measurement conditions, the curve can be used in a manner where the input element is holding the coupler SPL output curve, and the output element is holding the Real Ear SPL output curve. This will yield the correct gain value, where the result gives the difference between a measurement in a coupler and a measurement in the Patient’s ear. This curve is to be read as gain (output - input). ##RECDCrv##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element RealEarCouplerDifference/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ##TRHMeasCond
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ##TRHMeasCond</xs:documentation>   </xs:annotation> </xs:element>

element RealEarCouplerDifference/RECD

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	FrequencyMeasurementPoint
properties	minOcc  1 maxOcc  169 content  complex
children	Frequency Input Output
annotation	documentation Real Ear to Coupler Difference measurement As input and output are performed with the same measurement conditions, the curve can be used in a manner where the input element is holding the coupler SPL output curve, and the output element is holding the Real Ear SPL output curve. This will yield the correct gain value, where the result gives the difference between a measurement in a coupler and a measurement in the Patient’s ear. This curve is to be read as gain (output - input). ##RECDCrv##
source	<xs:element name="RECD" type="FrequencyMeasurementPoint" maxOccurs="169">   <xs:annotation>     <xs:documentation>Real Ear to Coupler Difference measurement As input and output are performed with the same measurement conditions, the curve can be used in a manner where the input element is holding the coupler SPL output curve, and the output element is holding the Real Ear SPL output curve. This will yield the correct gain value, where the result gives the difference between a measurement in a coupler and a measurement in the Patient’s ear. This curve is to be read as gain (output - input). ##RECDCrv##</xs:documentation>   </xs:annotation> </xs:element>

complexType TargetCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Curve Result Resolution PreDelay
used by	elements  TargetMeasurement/AttackCurve TargetMeasurement/ReleaseCurve
annotation	documentation A single curve for partial info of an Attack/Release measurement. The structure can contain either an attack or a release curve. ## TARCurve ##
source	<xs:complexType name="TargetCurve">   <xs:annotation>     <xs:documentation>A single curve for partial info of an Attack/Release measurement. The structure can contain either an attack or a release curve. ## TARCurve ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Curve" type="TargetMeasurementPoint">       <xs:annotation>         <xs:documentation>The curve itself ## Curve ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Result" type="xs:integer">       <xs:annotation>         <xs:documentation>The result of an Attack / Release Measurement is defined as the point in time where the output of the Hearing Instrument is stabilized at a new level. As stimulus is used a sinus wave. The time resolution of the measurement (in milliseconds). ## Result ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Resolution" type="xs:integer">       <xs:annotation>         <xs:documentation>Expresses the time resolution of the Attack / Release Measurement. (In milliseconds). ## Resolution ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PreDelay" type="xs:integer">       <xs:annotation>         <xs:documentation>The predelay is saved in the Attack Release Curve as the no. of milliseconds included in the curve before the level change. ## PreDelay ##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TargetCurve/Curve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	TargetMeasurementPoint
properties	content  complex
children	Output
annotation	documentation The curve itself ## Curve ##
source	<xs:element name="Curve" type="TargetMeasurementPoint">   <xs:annotation>     <xs:documentation>The curve itself ## Curve ##</xs:documentation>   </xs:annotation> </xs:element>

element TargetCurve/Result

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation The result of an Attack / Release Measurement is defined as the point in time where the output of the Hearing Instrument is stabilized at a new level. As stimulus is used a sinus wave. The time resolution of the measurement (in milliseconds). ## Result ##
source	<xs:element name="Result" type="xs:integer">   <xs:annotation>     <xs:documentation>The result of an Attack / Release Measurement is defined as the point in time where the output of the Hearing Instrument is stabilized at a new level. As stimulus is used a sinus wave. The time resolution of the measurement (in milliseconds). ## Result ##</xs:documentation>   </xs:annotation> </xs:element>

element TargetCurve/Resolution

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Expresses the time resolution of the Attack / Release Measurement. (In milliseconds). ## Resolution ##
source	<xs:element name="Resolution" type="xs:integer">   <xs:annotation>     <xs:documentation>Expresses the time resolution of the Attack / Release Measurement. (In milliseconds). ## Resolution ##</xs:documentation>   </xs:annotation> </xs:element>

element TargetCurve/PreDelay

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation The predelay is saved in the Attack Release Curve as the no. of milliseconds included in the curve before the level change. ## PreDelay ##
source	<xs:element name="PreDelay" type="xs:integer">   <xs:annotation>     <xs:documentation>The predelay is saved in the Attack Release Curve as the no. of milliseconds included in the curve before the level change. ## PreDelay ##</xs:documentation>   </xs:annotation> </xs:element>

complexType TargetMeasurement

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	MeasurementConditions LevelStep AttackCurve ReleaseCurve
used by	element  HIMSAHitStandard/HearingInstrumentTest/AttackRecoverCurve
annotation	documentation Attack / Recovery Measurement. A complete curve set containing a full Attack/Release test. ## TARMeas ##
source	<xs:complexType name="TargetMeasurement">   <xs:annotation>     <xs:documentation>Attack / Recovery Measurement. A complete curve set containing a full Attack/Release test. ## TARMeas ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="MeasurementConditions" type="MeasurementConditions">       <xs:annotation>         <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LevelStep">       <xs:annotation>         <xs:documentation>Input Level step size from the start level defined in Measurement Conditions. The input used is a sine wave. At Attack is used Level Increase, at Release is used Level Decrease. The Level Step has to be performed at a zero crossing. ##levelStep##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="AttackCurve" type="TargetCurve">       <xs:annotation>         <xs:documentation>The result of an Attack Measurement. ##attackCrv##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ReleaseCurve" type="TargetCurve">       <xs:annotation>         <xs:documentation>The curve where the stimulus level decreases. ##releaseCrv##</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element TargetMeasurement/MeasurementConditions

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	MeasurementConditions
properties	content  complex
children	ManufacturerCode DevTypeCode SignalType SignalOutput SignalLevel SignalFrequency BatteryType BatteryPillType BatteryVoltage BatteryImpedance UseRealEarCoupler MeasurementMode MeasurementIdentification
annotation	documentation HIT Measurement Conditions. ## TRHMeasCond ##
source	<xs:element name="MeasurementConditions" type="MeasurementConditions">   <xs:annotation>     <xs:documentation>HIT Measurement Conditions. ## TRHMeasCond ##</xs:documentation>   </xs:annotation> </xs:element>

element TargetMeasurement/LevelStep

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Input Level step size from the start level defined in Measurement Conditions. The input used is a sine wave. At Attack is used Level Increase, at Release is used Level Decrease. The Level Step has to be performed at a zero crossing. ##levelStep##
source	<xs:element name="LevelStep">   <xs:annotation>     <xs:documentation>Input Level step size from the start level defined in Measurement Conditions. The input used is a sine wave. At Attack is used Level Increase, at Release is used Level Decrease. The Level Step has to be performed at a zero crossing. ##levelStep##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element TargetMeasurement/AttackCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	TargetCurve
properties	content  complex
children	Curve Result Resolution PreDelay
annotation	documentation The result of an Attack Measurement. ##attackCrv##
source	<xs:element name="AttackCurve" type="TargetCurve">   <xs:annotation>     <xs:documentation>The result of an Attack Measurement. ##attackCrv##</xs:documentation>   </xs:annotation> </xs:element>

element TargetMeasurement/ReleaseCurve

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	TargetCurve
properties	content  complex
children	Curve Result Resolution PreDelay
annotation	documentation The curve where the stimulus level decreases. ##releaseCrv##
source	<xs:element name="ReleaseCurve" type="TargetCurve">   <xs:annotation>     <xs:documentation>The curve where the stimulus level decreases. ##releaseCrv##</xs:documentation>   </xs:annotation> </xs:element>

complexType TargetMeasurementPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	Output
used by	element  TargetCurve/Curve
annotation	documentation A measurement point for Attack / Release measurements. This structure only contains an output level value, the input curve is not saved. ## TARMeasPoint ##
source	<xs:complexType name="TargetMeasurementPoint">   <xs:annotation>     <xs:documentation>A measurement point for Attack / Release measurements. This structure only contains an output level value, the input curve is not saved. ## TARMeasPoint ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Output" maxOccurs="256">       <xs:annotation>         <xs:documentation>Output Level Attack or Release curve. </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element TargetMeasurementPoint/Output

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	minOcc  1 maxOcc  256 content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Output Level Attack or Release curve.
source	<xs:element name="Output" maxOccurs="256">   <xs:annotation>     <xs:documentation>Output Level Attack or Release curve. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType TargetPoint

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
children	TargetFrequency TargetGain
used by	element  FullTargetCurve/Target
annotation	documentation ## TTargetPoint ##
source	<xs:complexType name="TargetPoint">   <xs:annotation>     <xs:documentation>## TTargetPoint ##</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="TargetFrequency" type="xs:integer">       <xs:annotation>         <xs:documentation>Target Frequency. ##targetFreq##</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TargetGain">       <xs:annotation>         <xs:documentation>Target Gain. ##targetGain##</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:decimal">           <xs:fractionDigits value="1"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element TargetPoint/TargetFrequency

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	xs:integer
properties	content  simple
annotation	documentation Target Frequency. ##targetFreq##
source	<xs:element name="TargetFrequency" type="xs:integer">   <xs:annotation>     <xs:documentation>Target Frequency. ##targetFreq##</xs:documentation>   </xs:annotation> </xs:element>

element TargetPoint/TargetGain

diagram
namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:decimal
properties	content  simple
facets	Kind  Value  Annotation fractionDigits  1
annotation	documentation Target Gain. ##targetGain##
source	<xs:element name="TargetGain">   <xs:annotation>     <xs:documentation>Target Gain. ##targetGain##</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:decimal">       <xs:fractionDigits value="1"/>     </xs:restriction>   </xs:simpleType> </xs:element>

simpleType BatteryPillType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/BatteryPillType BatteryMeasurementConditions/BatteryPillType
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Battery312 enumeration  Battery13 enumeration  Battery230 enumeration  Battery675 enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The type of battery pill. ##TBattPill##
source	<xs:simpleType name="BatteryPillType">   <xs:annotation>     <xs:documentation>The type of battery pill. ##TBattPill## </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="None"/>     <xs:enumeration value="Battery312"/>     <xs:enumeration value="Battery13"/>     <xs:enumeration value="Battery230"/>     <xs:enumeration value="Battery675"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

simpleType BatteryType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/BatteryType BatteryMeasurementConditions/BatteryType
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  Mercury enumeration  ZincAir enumeration  OtherType enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The battery type used. ##TBattType##
source	<xs:simpleType name="BatteryType">   <xs:annotation>     <xs:documentation>The battery type used. ##TBattType##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="None"/>     <xs:enumeration value="Mercury"/>     <xs:enumeration value="ZincAir"/>     <xs:enumeration value="OtherType"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

simpleType CouplerType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	element  FullTargetCurve/CouplerType
facets	Kind  Value  Annotation enumeration  Undefined enumeration  None enumeration  RealEar enumeration  Coupler711 enumeration  Coupler2cc enumeration  FreiburgerConicalCoupler enumeration  FreiburgerConicalChildrenCoupler enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The device in which the probe microphone is placed; In other words; this is where the output is read. ##TCouplerType## ++ Please note that FreibKK was changed to FreiburgerConicalCoupler  AND FreibKKK to FreiburgerConicalChildrenCoupler ++
source	<xs:simpleType name="CouplerType">   <xs:annotation>     <xs:documentation>The device in which the probe microphone is placed; In other words; this is where the output is read. ##TCouplerType## ++ Please note that FreibKK was changed to FreiburgerConicalCoupler  AND FreibKKK to FreiburgerConicalChildrenCoupler ++</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="None"/>     <xs:enumeration value="RealEar"/>     <xs:enumeration value="Coupler711"/>     <xs:enumeration value="Coupler2cc"/>     <xs:enumeration value="FreiburgerConicalCoupler"/>     <xs:enumeration value="FreiburgerConicalChildrenCoupler"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

simpleType FittingRule

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	element  FullTargetCurve/FittingRule
facets	Kind  Value  Annotation enumeration  Undefined enumeration  POGO enumeration  POGOII enumeration  NAL enumeration  NALProf enumeration  Berger enumeration  HalfGain enumeration  ThirdGain enumeration  DSL enumeration  LIBBY enumeration  Byrne enumeration  CoxMSU enumeration  User1 enumeration  User2 enumeration  User3 enumeration  User4 enumeration  User5 enumeration  User6 enumeration  User7 enumeration  User8 enumeration  User9 enumeration  User10
annotation	documentation The fitting rule used for calculation of a target curve ##TFittingRule##
source	<xs:simpleType name="FittingRule">   <xs:annotation>     <xs:documentation>The fitting rule used for calculation of a target curve ##TFittingRule## </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="POGO"/>     <xs:enumeration value="POGOII"/>     <xs:enumeration value="NAL"/>     <xs:enumeration value="NALProf"/>     <xs:enumeration value="Berger"/>     <xs:enumeration value="HalfGain"/>     <xs:enumeration value="ThirdGain"/>     <xs:enumeration value="DSL"/>     <xs:enumeration value="LIBBY"/>     <xs:enumeration value="Byrne"/>     <xs:enumeration value="CoxMSU"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>     <xs:enumeration value="User4"/>     <xs:enumeration value="User5"/>     <xs:enumeration value="User6"/>     <xs:enumeration value="User7"/>     <xs:enumeration value="User8"/>     <xs:enumeration value="User9"/>     <xs:enumeration value="User10"/>   </xs:restriction> </xs:simpleType>

simpleType HearingInstrumentType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	element  FullTargetCurve/HearingInstrumentType
facets	Kind  Value  Annotation enumeration  Undefined enumeration  ITE enumeration  BTE enumeration  ITC enumeration  MITC enumeration  Body enumeration  User1 enumeration  User2 enumeration  User3 enumeration  User4 enumeration  User5
annotation	documentation The type of hearing instrument being tested. ##THIType##
source	<xs:simpleType name="HearingInstrumentType">   <xs:annotation>     <xs:documentation>The type of hearing instrument being tested. ##THIType##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="ITE"/>     <xs:enumeration value="BTE"/>     <xs:enumeration value="ITC"/>     <xs:enumeration value="MITC">       <!--Mini In The Canal-->     </xs:enumeration>     <xs:enumeration value="Body"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>     <xs:enumeration value="User4"/>     <xs:enumeration value="User5"/>   </xs:restriction> </xs:simpleType>

simpleType MeasurementIdentification

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/MeasurementIdentification BatteryMeasurementConditions/MeasurementIdentification
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Audiometry enumeration  TargetCurve enumeration  UnaidedResponse enumeration  OccludedResponse enumeration  InsertionResponseCompensated enumeration  AidedResponse enumeration  InputOutput enumeration  HarmonicDistortion enumeration  OcclusionEffect enumeration  RealEarToCouplerDifference enumeration  XSPL90 enumeration  FullOnGain enumeration  FrequencyResponse enumeration  BatteryCurrent enumeration  IntermodulationDistortion enumeration  EquivalentInputNoise enumeration  AttackRecovery enumeration  InductionCoil enumeration  User1 enumeration  User2 enumeration  User3 enumeration  InsertionResponseUncompensated
annotation	documentation InsertGain_U=50? Identification of the measurement; mainly for use with data export and storage of not yet publicly defined measurements at the end of the public buffer. ##TMeasurement##
source	<xs:simpleType name="MeasurementIdentification">   <xs:annotation>     <xs:documentation>InsertGain_U=50? Identification of the measurement; mainly for use with data export and storage of not yet publicly defined measurements at the end of the public buffer. ##TMeasurement##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="Audiometry"/>     <xs:enumeration value="TargetCurve"/>     <xs:enumeration value="UnaidedResponse"/>     <xs:enumeration value="OccludedResponse"/>     <xs:enumeration value="InsertionResponseCompensated"/>     <xs:enumeration value="AidedResponse"/>     <xs:enumeration value="InputOutput"/>     <xs:enumeration value="HarmonicDistortion"/>     <xs:enumeration value="OcclusionEffect"/>     <xs:enumeration value="RealEarToCouplerDifference"/>     <xs:enumeration value="XSPL90"/>     <xs:enumeration value="FullOnGain"/>     <xs:enumeration value="FrequencyResponse"/>     <xs:enumeration value="BatteryCurrent"/>     <xs:enumeration value="IntermodulationDistortion"/>     <xs:enumeration value="EquivalentInputNoise"/>     <xs:enumeration value="AttackRecovery"/>     <xs:enumeration value="InductionCoil"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>     <xs:enumeration value="InsertionResponseUncompensated"/>   </xs:restriction> </xs:simpleType>

simpleType MeasurementMode

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/MeasurementMode BatteryMeasurementConditions/MeasurementMode
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Sweep enumeration  FastFourierTransform enumeration  TimeMeasurement enumeration  Battery enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The measurement mode was used during the measurement. ##TMeasMode##
source	<xs:simpleType name="MeasurementMode">   <xs:annotation>     <xs:documentation>The measurement mode was used during the measurement. ##TMeasMode##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="Sweep"/>     <xs:enumeration value="FastFourierTransform"/>     <xs:enumeration value="TimeMeasurement"/>     <xs:enumeration value="Battery"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

simpleType SignalOutputType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/SignalOutput BatteryMeasurementConditions/SignalOutput
facets	Kind  Value  Annotation enumeration  Undefined enumeration  InternalBox enumeration  ExternalBox enumeration  FreeField enumeration  InternalBoxCoil enumeration  ExternalBoxCoil enumeration  FreeFieldInductionCoil enumeration  AirConduction enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The channel/media used to present the signal/stimulus. ##TSignalOutput##
source	<xs:simpleType name="SignalOutputType">   <xs:annotation>     <xs:documentation>The channel/media used to present the signal/stimulus. ##TSignalOutput##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="InternalBox"/>     <xs:enumeration value="ExternalBox"/>     <xs:enumeration value="FreeField"/>     <xs:enumeration value="InternalBoxCoil"/>     <xs:enumeration value="ExternalBoxCoil"/>     <xs:enumeration value="FreeFieldInductionCoil"/>     <xs:enumeration value="AirConduction"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

simpleType SignalType

namespace	http://www.himsa.com/Measurement/HearingInstrumentTest
type	restriction of xs:NMTOKEN
properties	base  xs:NMTOKEN
used by	elements  MeasurementConditions/SignalType BatteryMeasurementConditions/SignalType
facets	Kind  Value  Annotation enumeration  Undefined enumeration  Tone enumeration  Warble enumeration  NarrNoise enumeration  TwoTone enumeration  WhiteNoise enumeration  PinkNoise enumeration  SpeechNoise enumeration  Patient enumeration  User1 enumeration  User2 enumeration  User3
annotation	documentation The signal type used during the measurement. ##TSignalType##
source	<xs:simpleType name="SignalType">   <xs:annotation>     <xs:documentation>The signal type used during the measurement. ##TSignalType##</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Undefined"/>     <xs:enumeration value="Tone"/>     <xs:enumeration value="Warble"/>     <xs:enumeration value="NarrNoise"/>     <xs:enumeration value="TwoTone"/>     <xs:enumeration value="WhiteNoise"/>     <xs:enumeration value="PinkNoise"/>     <xs:enumeration value="SpeechNoise"/>     <xs:enumeration value="Patient"/>     <xs:enumeration value="User1"/>     <xs:enumeration value="User2"/>     <xs:enumeration value="User3"/>   </xs:restriction> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
